IEC 61386-21:2021 Clause 10.4.102 and Figure 103 Bending Apparatus for Non-Metallic and Composite Conduits

IEC 61386-21:2021 Clause 10.4.102 and Figure 103 Bending Apparatus for Non-Metallic and Composite Conduits

Product No: LS-B52

Leave a Message






    captcha

    Description

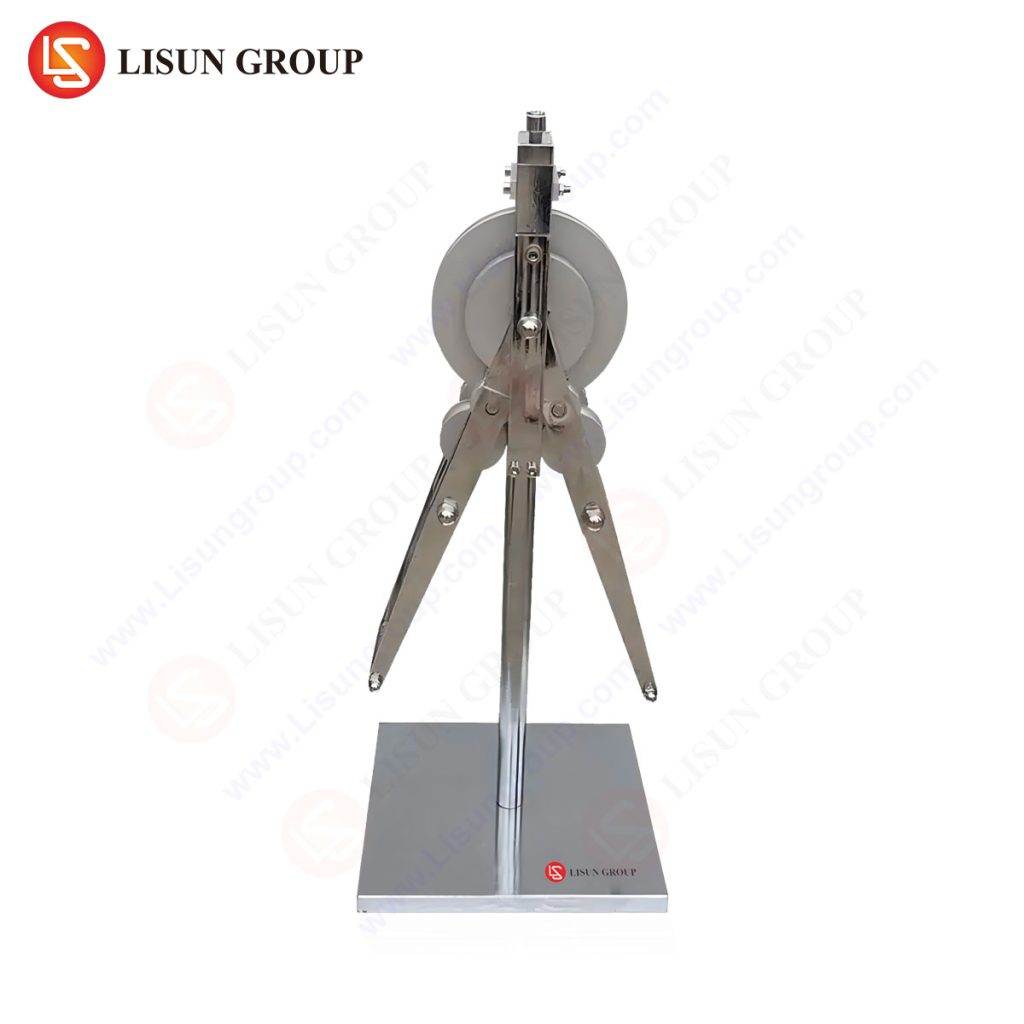

    The IEC 61386-21:2021 Clause 10.4.102 and Figure 103 bending test apparatus is engineered for evaluating the bending performance of non-metallic and composite conduits, including insulating electrical conduit systems. Prior to testing, a specialized bending aid is inserted into the specimen. The specimen is secured through the coordinated action of the forming mold and clamping mechanisms. The apparatus’s bending mechanism applies controlled force to achieve the specified bending angle. Following the test procedure, the specimen undergoes visual inspection for surface cracks, and the free passage of a designated gauge through the conduit under gravitational force is verified. This methodology assesses the structural integrity and mechanical withstand capability of conduit systems under bending stress conditions. The equipment operates in strict compliance with regulatory requirements, delivering stable and repeatable bending processes that provide objective data for quality assurance of conduit products.

    Compliance Standards:

    • IEC 61386-1:2017 – Rigid conduit systems for electrical installation – Part 1: General requirements
    • GB/T 20041.1-2015 – 电气安装用导管系统 第 1 部分：通用要求 (Conduit systems for electrical installation – Part 1: General requirements)
    • GB/T 14823.2-2017 – 电气安装用导管 第 2 部分：刚性绝缘材料平壁导管 (Conduits for electrical installation – Part 2: Rigid insulating materials plain wall conduits)
    • JG 3050-1998 – 建筑用绝缘电工套管及配件 (Insulated electrical conduits and fittings for building construction)
    • ZBG 33008-1990 – 聚氯乙烯塑料波纹电线管 (Corrugated PVC plastic wire conduits)

    Technical Specifications:

    • Nominal specimen diameter: 16, 20, 25 mm
    • Profile wheel transverse radius: 48, 60, 75 mm
    • Bending wheel track radius: 84, 105, 131.25 mm
    • Profile wheel and bending wheel groove radius: 8.1, 10.1, 12.6 mm
    • Bending wheel groove diameter: 24, 30, 37.5 mm
    • Specimen bending angle: 180°
    • Overall dimensions: 300 × 300 × 600 mm
    • Weight: approximately 25 kg

    Primary Standard Compliance: IEC 61386-21 (GB 20041.21) “Conduit systems for cable management – Part 21: Particular requirements – Rigid conduit systems” Clause 10.4.102 and Figure 103

    Reference Standards: IEC 61386-21:2021 Clause 10.4.102, IEC 61386-21:2021 Figure 103

    Product Identification: LS-B52
