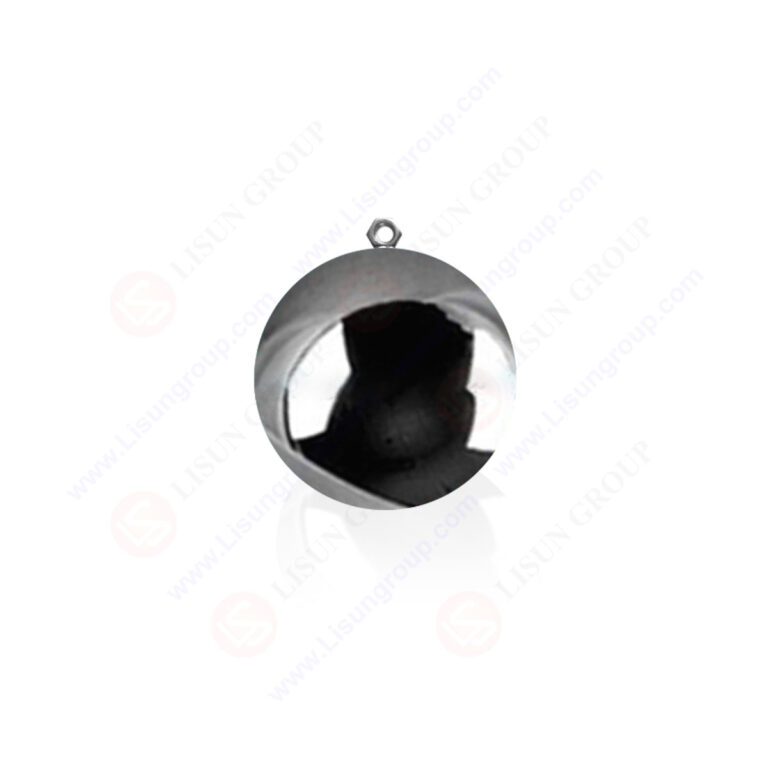

IEC 62368-1/UL 1989 1040g 63.5mm Steel Impact Test Sphere with Suspension Ring
Leave a Message
The IEC 62368-1/UL 1989 compliant 1040g 63.5mm Steel Impact Test Sphere with Suspension Ring is a precision-engineered impact testing instrument designed for medium-to-high impact resistance validation of protective enclosures. This tool is specifically engineered for testing industrial control panels, large-format consumer electronics (e.g., displays exceeding 75 inches), and heavy-duty household appliances (e.g., commercial-grade refrigeration units). Fabricated from solid carbon steel, it delivers consistent, controlled impact energy to simulate real-world mechanical stress scenarios, including accidental drops of substantial objects. The integrated stainless steel suspension ring facilitates precise height adjustment and secure mounting, essential for repeatable testing protocols, while the polished surface finish prevents artificial damage to test specimens. Fully compliant with international safety standards, this instrument verifies enclosure integrity by assessing resistance to cracking, deformation, or exposure of hazardous internal components (e.g., high-voltage circuits), making it indispensable for manufacturers conducting product robustness validation.
Specifications:
Tool Type: 1040g Steel Impact Test Sphere with Suspension Ring (for medium-to-high impact enclosure testing)
Sphere Material: Solid carbon steel (density: 7.85g/cm³; maintains structural integrity under standard impact conditions; ensures consistent force application)
Ring Material: Stainless steel (corrosion-resistant; tensile strength ≥ 550MPa; secure suspension capability up to 1.8m maximum height)
Key Dimensions:
– Sphere diameter: 63.5 mm
– Sphere mass: 1040 g
Surface Treatment: Smooth, deburred finish (prevents surface abrasion on tested enclosures; ensures uniform impact distribution)
Typical Impact Height Range: 1.2–1.8 meters (adjustable according to device classification; suitable for industrial and heavy consumer product testing)
Core Function: Delivers controlled medium-to-high impact energy to evaluate enclosure structural integrity; verifies absence of hazardous component exposure following impact events
Test Procedures:
1. Inspect the steel sphere for surface imperfections, structural defects, or dimensional deviations, and examine the suspension ring for deformation or wear indicators.
