IEC 63294 IEC 60245-1 IEC 60227-1 Static Flexibility Test Machine for Flexible Cables
Leave a Message

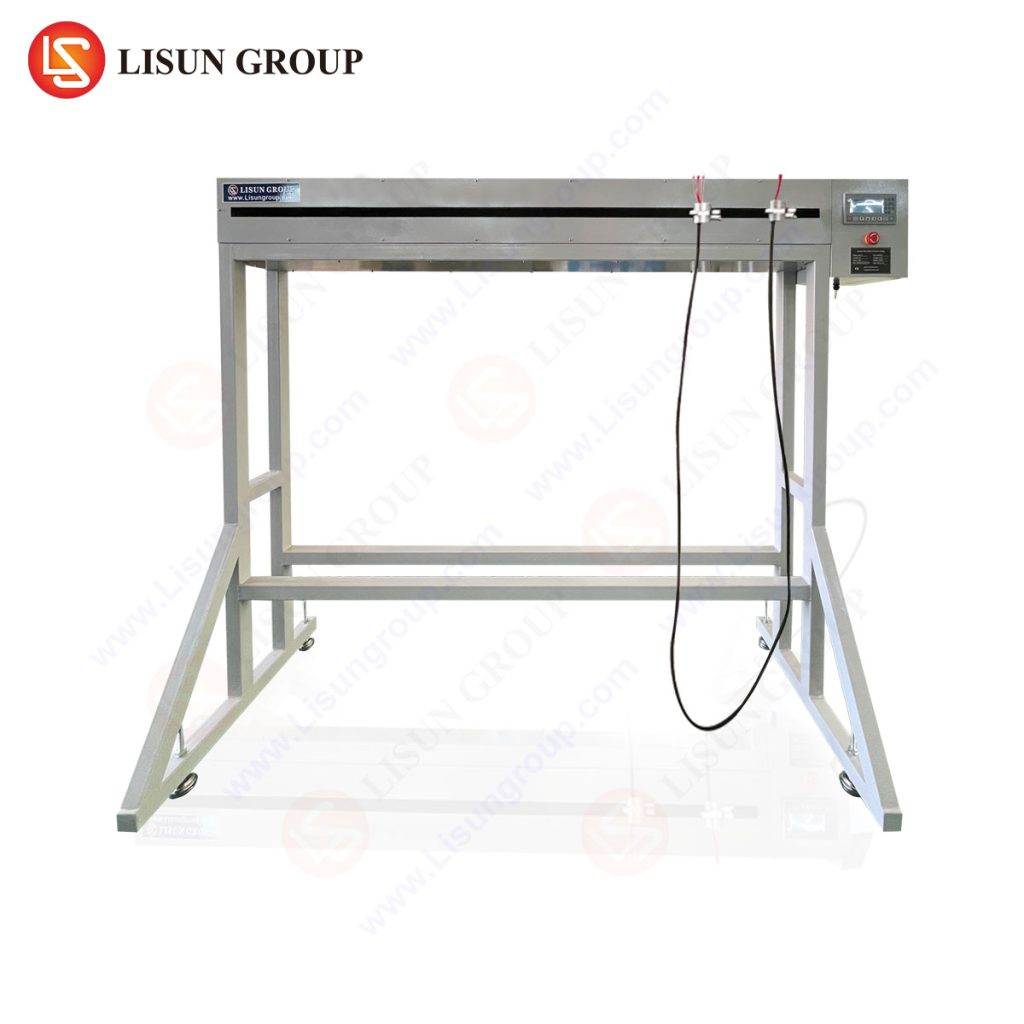

The WDT-3 Static Flexibility Test Machine is designed for static flexure testing in the mechanical strength assessment of finished flexible cables. During the procedure, a cable sample of a specified length is secured at one clamping end. Maintaining the initial clamping distance, one end is adjusted to bend the cable into a standard U-shape. The test concludes by measuring the final distance between the two clamping ends. This equipment is exclusively suitable for flexible cables with defined structures and specifications. It is not applicable for cables with conductor nominal cross-sections or concentric layers that exceed the specified range, ensuring standardized testing conditions for verifying the mechanical performance compliance of flexible cables.
Standard: IEC 60245-1:2008 Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 1: General requirements IEC 60245-2:2008 Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 2: Single core cables with thermoplastic insulation IEC 60227-1:2024 Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V – Part 1: General requirements GB/T 5013.1-2008 Rated voltage 450/750V and below rubber insulated cables Part 1: General requirements GB/T 5013.2-2008 Rated voltage 450/750V and below rubber insulated cables Part 2: Test methods
Specification: • Flexural length: 200 -1500(mm) • Sample outer diameter: φ6 – 32(mm) • Sample length: 3000±5% (mm) • Height above ground: 1500mm • Overall dimensions (length*width*height): 2000*400*1800mm
Applications: 1. Static bending mechanical strength testing of rubber-insulated finished flexible cables; 2. Static bending performance verification of PVC-insulated finished flexible cables; 3. Factory quality inspection by cable manufacturers of flexible cables that meet the applicable scope; 4. Compliance testing of the mechanical performance of flexible cables by third-party testing institutions; 5. Optimization testing of the static bending performance of flexible cables during cable development.
