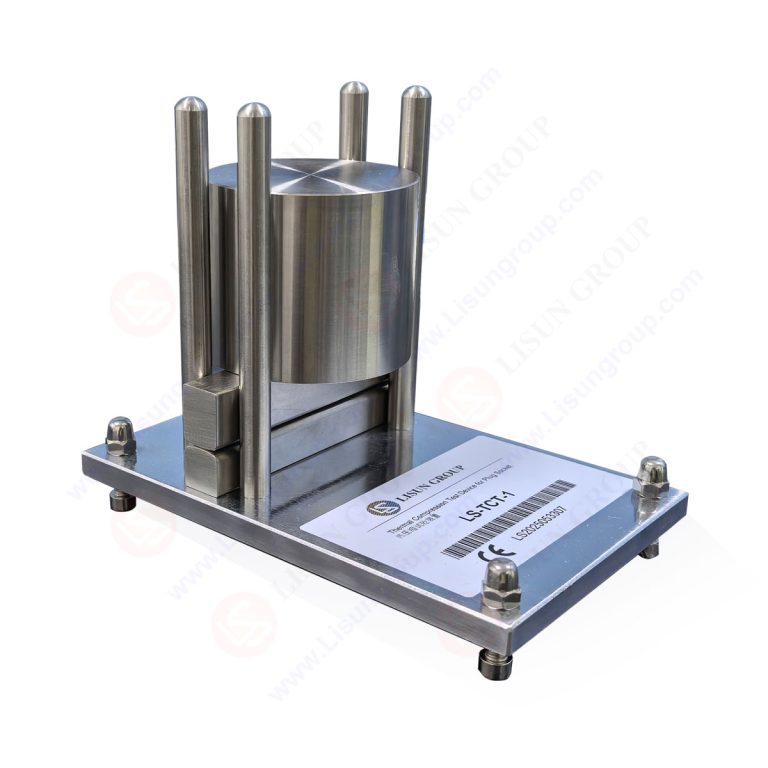

IEC60884-1:2022 Figure 41 Thermal Pressure Test Apparatus for Socket-Outlets
Leave a Message
The IEC60884-1:2022 Figure 41 Thermal Pressure Test Apparatus for Socket-Outlets comprises a movable pressure block, a fixed pressure block, a guide rail support structure, and calibrated weights. This apparatus enables assessment of pressure resistance characteristics for specified electrical components under elevated temperature conditions. During test execution, it must be operated in conjunction with a certified high-temperature 32. By subjecting test specimens to controlled thermal environments and precisely regulated mechanical pressure, this system evaluates whether components maintain acceptable pressure resistance performance when exposed to heat, thereby validating structural integrity and pressure reliability when encountering temperature variations in practical application scenarios.
Compliance Standards:
| Standard Reference | Standard Designation |
| IEC 60884-1:2022 | Plugs and socket-outlets for household and similar purposes – Part 1: General requirements |
| VDE0620 | General Requirements for Electrical Accessories and Surface-Mounted Boxes (VDE 0620) |
| GB/T 2099.1-2021 |
