IECEE CEE-7 C21 Lateral Strain Resistance Test Device for 10/16A 250V Two-Pole Fixed Socket-Outlets

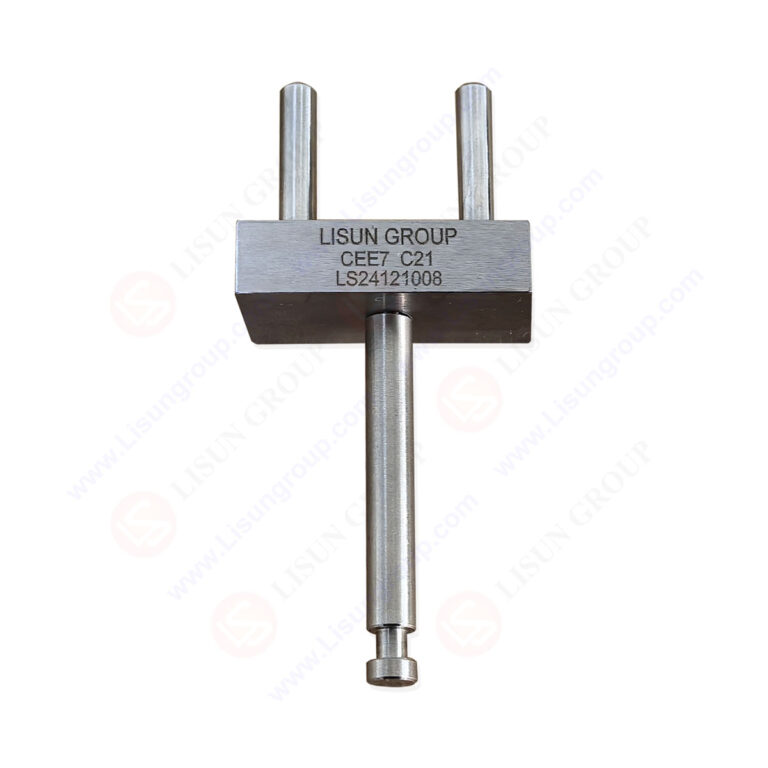

IECEE CEE-7 C21 Lateral Strain Resistance Test Device for 10/16A 250V Two-Pole Fixed Socket-Outlets is engineered to evaluate the lateral strain resistance of 10/16A 250V two-pole fixed socket-outlets in full compliance with IECEE CEE-7 standards. The device incorporates precision dimensional engineering with stringent tolerance controls and utilizes high-grade steel material with hardness exceeding 50HRC and minimal thermal expansion coefficient. These technical specifications ensure consistent, reliable performance during testing procedures, delivering accurate assessments of socket-outlet structural integrity and dimensional conformity to IECEE CEE-7 requirements.

Technical Specifications

• Rated Current Compatibility: 10/16A
• Rated Voltage Compatibility: 250V
• Applicable Product Type: Two-pole fixed socket-outlets
• Testing Function: Lateral strain resistance evaluation
• Compliance Standard: IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purposes” C21
• Material Construction: High-grade steel
• Material Hardness: >50HRC
• Material Property: Low thermal expansion coefficient
• Dimensional Control: Precision engineering with strict tolerance adherence
• Surface Finish: Meets standard surface roughness requirements
• Applied Test Forces: 8±0.5 N, 15±0.5 N
• Key Dimensional Parameters (mm): 19±0.5, 42±0.5
• Corresponding Standard Figure: Fig. 21

Test Procedures

1. Prepare the IECEE CEE-7 C21 test device and the 10/16A 250V two-pole fixed socket-outlet specimen, ensuring both components are clean, free from contaminants, damage, or deformation that could compromise test accuracy.
2. Secure the socket-outlet specimen in a stable test fixture according to IECEE CEE-7 C21 standard requirements to prevent movement during testing procedures.
3. Align the test device with the specified position on the socket-outlet specimen as detailed in Fig. 21 of the IECEE CEE-7 standard.
4. Apply the initial specified test force (8±0.5 N) laterally to the socket-outlet specimen through the test device, maintaining the force for the required duration specified in the standard.
5. …
