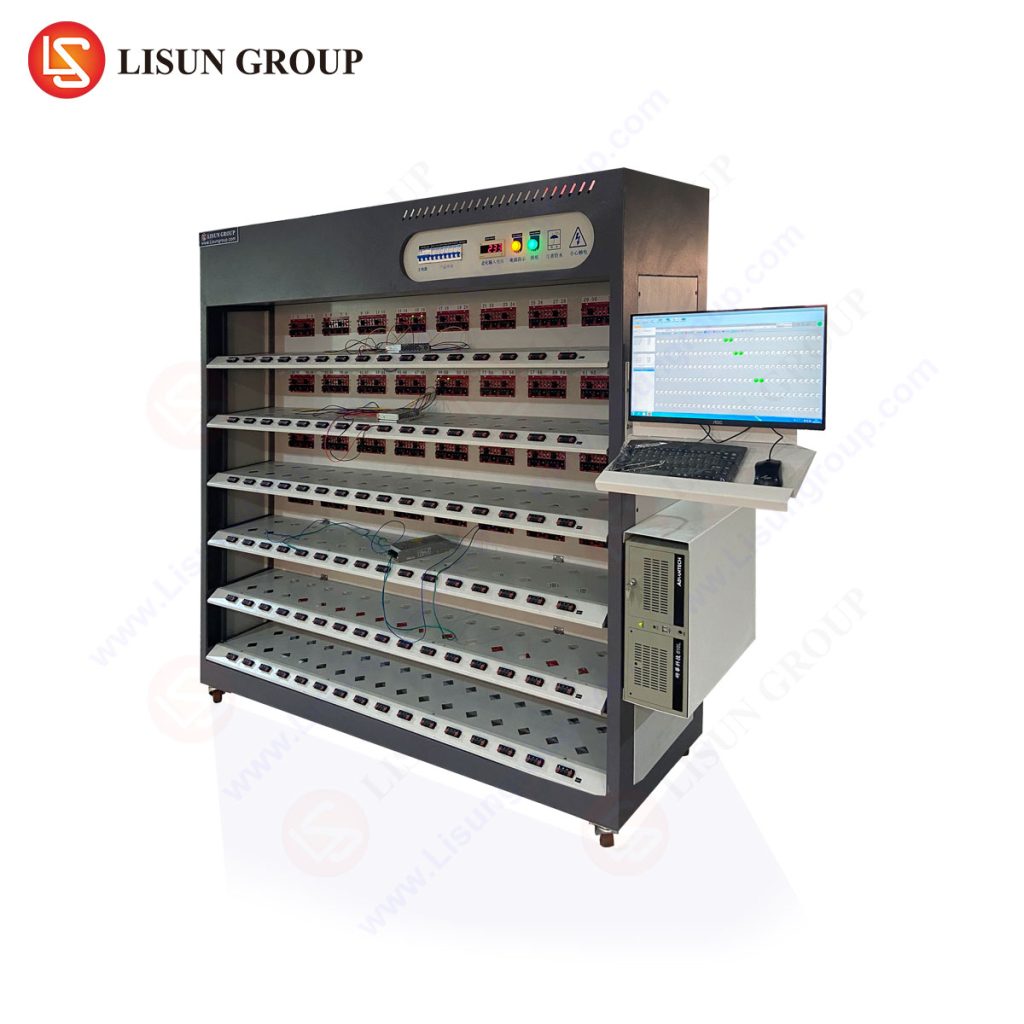

LED Driver Aging Test Rack
Leave a Message
The LED Driver Aging Test Rack is engineered for production-line testing of finished LED driver products. Featuring streamlined operation and ergonomic design, this system enhances technician efficiency while ensuring compliance with IEC 62384:2006 and GB/T 24825-2009 standards for DC or AC supplied electronic control gear for LED modules.
Standard Compliance
IEC 62384:2006 / GB/T 24825-2009: “DC or AC supplied electronic control gear for LED modules – Performance requirements”
System Configuration
The LED Driver Aging Test Rack comprises three integrated subsystems:
- LED Driver Aging Rack structural frame
- Aging Control System with PC workstation and proprietary software
- LED Load Modules with temperature control system
Technical Specifications
- Application Range: Single-channel and multi-channel LED driver power aging tests
- Control Interface: Computer workstation with monitor for parameter configuration and real-time data acquisition
- Load Parameter Configuration: Software-programmable settings for voltage, current, and power parameters
- Real-time Monitoring: Continuous display of voltage, current, power, and temperature parameters
- Load Modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP), and LED simulation modes
- Aging Control System: ON/OFF control signal output, relay switch control signals, K-type thermocouple temperature acquisition
- Channel Configuration: Parallel-connected channels supporting arbitrary load modes with power expansion capability
- Temperature Range: RT+10℃ to 60℃ (ambient temperature plus 10℃ to 60℃)
- Customization: Configurable to specific LED driver power requirements and customer specifications
Model Reference
LISUN LEDRACK-100W192P LED Driver Aging Test Rack
Technical Support Resources
LISUN LEDRACK-100W192P LED Driver Aging Test Rack – After-sales Frequently Asked Questions (FAQ)
The LISUN LEDRACK-100W192P has been deployed in field applications for over a decade. Our engineering support team has compiled comprehensive after-sales documentation addressing common operational questions and technical issues. Please consult the linked resource for self-service troubleshooting guidance. LISUN maintains regular updates to this technical knowledge base with additional FAQ content accessible through the designated topic link.
