Programmable DC Electronic Load

Programmable DC Electronic Load

Product No: M9822A

Leave a Message






    captcha

    Description

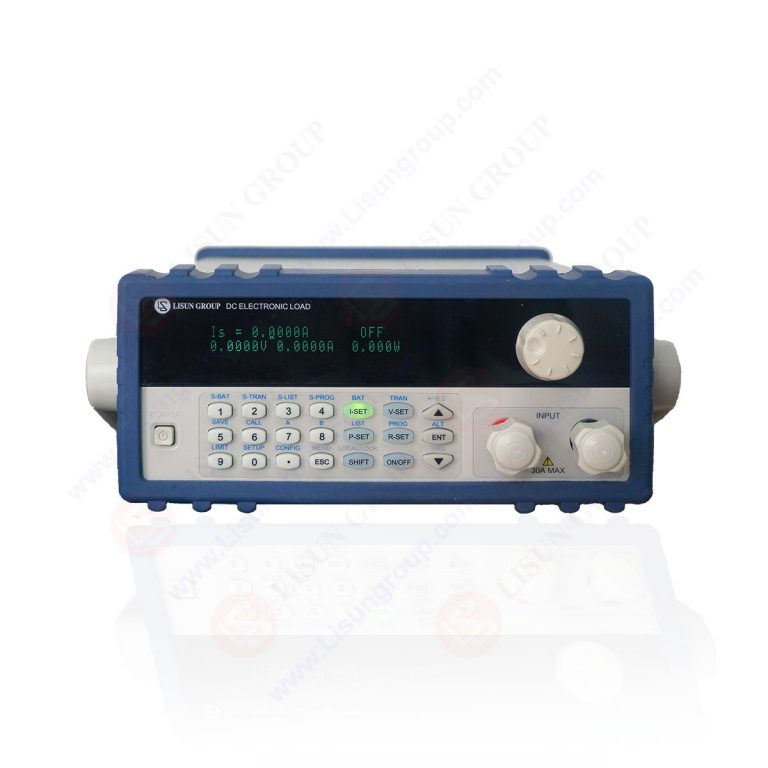

    The M98 series programmable DC electronic load employs advanced AD+DA conversion technology to deliver rapid, high-precision measurement capabilities. With instrument-grade resolution of 0.1mV and 0.1mA, the system effectively captures minute voltage and current fluctuations. The integrated CR-LED test mode precisely simulates diode conduction voltage characteristics, accurately replicating LED operational principles to provide true load condition representation. This methodology eliminates the voltage drops and current instability inherent in traditional fixed-resistance testing approaches.

    The M98 series programmable DC electronic loads are engineered for product development, production line testing, and quality inspection applications across multiple industries including LED drivers, switching power supplies, power transformers, battery systems, and charging equipment.

    LISUN Model Specifications: M9822B, M9822, M9822A, M9823, M9823A, M9824A, M9835A, M9843A

    Rated Input Parameters:
    Input Voltage: 0-500V, 0-150V, 0-500V
    Input Current: 0.1mA-15A, 0.1mA-30A, 0.1mA-60A, 0.1mA-120A, 0.1mA-240A
    Input Power: 300W, 600W, 1200W, 2400W, 4500W

    Display Configuration:
    VFD Display
    LCD Touch Screen Display

    Physical Dimensions (W×H×D): 215×88×335mm, 430×88×450mm, 435×200×510mm

    Technical Specifications:

    • Maximum voltage display resolution of 0.0001V for enhanced testing precision across diverse applications
    • 500kHz high-speed sampling AD converter with real-time voltage and current peak-to-peak measurement (Vpp/Vp+/Vp-/Ipp/Ip+/Ip-)
    • CR-LED test mode with optimized parameter configuration for operational efficiency
    • OCP test functionality with automatic acquisition of overcurrent protection points and maximum power point (Pmax) parameters
    • Dynamic load frequency up to 50kHz with configurable current slope and real-time voltage peak measurement (Vp+/Vp-)
    • Time measurement capabilities supporting OVP protection point analysis, protection timing tests, and power startup/hold time verification
    • Battery test mode with comprehensive discharge profiling and capacity analysis
