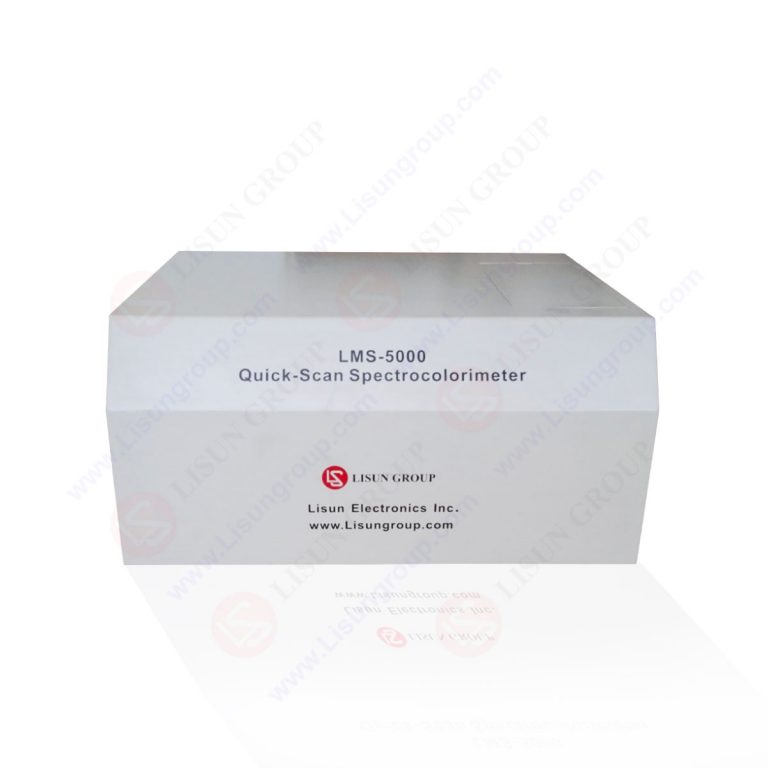

Rapid-Scan VIS Spectrophotometric Color Analyzer
Leave a Message
The LMS-5000 Rapid-Scan Mechanical Spectrophotometric Color Analyzer is a widely deployed single-monochromator spectrophotometer delivering laboratory-grade measurement accuracy. Typical spectral acquisition across the 380-800nm wavelength range requires less than 10 seconds. When integrated with appropriately sized integrating spheres and calibrated reference light sources, the LMS-5000 system enables comprehensive spectral characterization of LED devices, LED modules, compact fluorescent lamps (CFL), fluorescent tubes, cold cathode fluorescent lamps (CCFL), high-intensity discharge (HID) lamps, and various luminaire assemblies.
Standard:
CIE 177 “Color Rendering of White LED Light Sources”
CIE-13.3 “Method of Measuring and Specifying Colour Rendering Properties of Light Sources”
Optical-Engineering-49-3-033602 “Color quality Scale”
IEEE “Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers”
Specification:
• Measurement accuracy: High precision with acquisition speed under 10 seconds for LMS-5000 configuration
• Spectral wavelength range: 380nm to 800nm (LMS-5000UV option extends to 200-800nm UV-VIS spectrum)
• Spectral wavelength accuracy: ±0.2nm, Wavelength reproducibility: ±0.1nm
• Spectral sampling resolution: 5nm step scanning (Optional: 1nm resolution)
• Chromaticity coordinate accuracy (Δx, Δy): ±0.0003 (referenced to standard illuminant A)
• Correlated color temperature (CCT) range: 1,000K to 100,000K, CCT accuracy: ±0.3%
• Color rendering index (CRI) measurement range: 0 to 100.0, CRI accuracy: ±0.3% (referenced to standard illuminant A)
• Photometric linearity: ±0.3%, Photodetector classification: Class A
