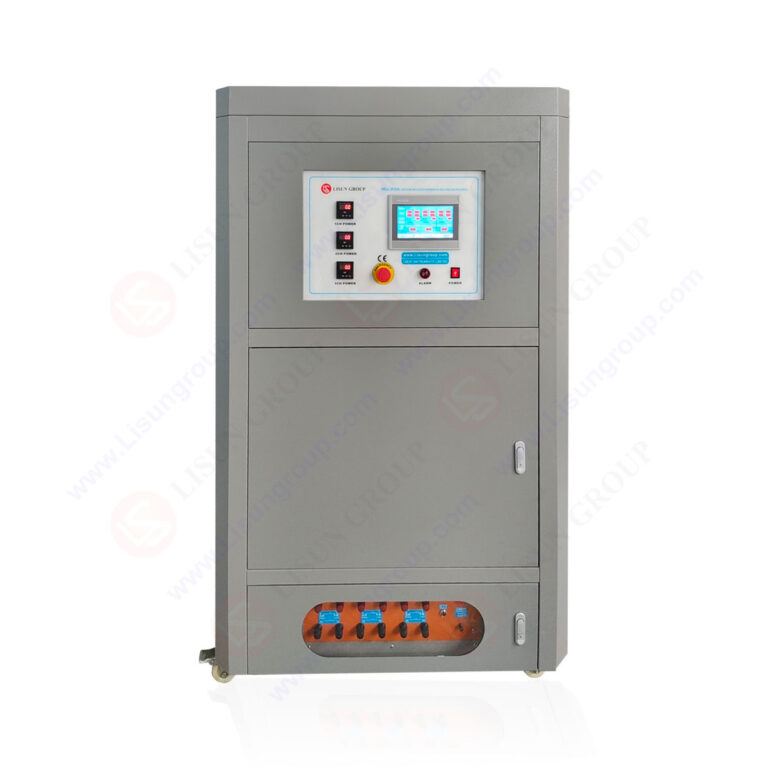

SBLL-3P20A Self-Ballasted Lamp Switch Load Breaking Capacity Tester

The SBLL-3P20A Self-Ballasted Lamp Switch Load Breaking Capacity Tester evaluates the load interruption capability of switches designed for self-ballasted lamp circuits. This equipment determines whether switches exhibit operational anomalies—including sustained arcing, contact welding, or delayed opening/closing—when controlling LED loads, while verifying their capacity to withstand electrical and thermal stresses without excessive degradation or hazardous effects.

The instrument incorporates an integrated voltage regulation system, eliminating the requirement for external voltage stabilization to achieve the specified test voltage. It features a digital display for real-time monitoring of input voltage and output power parameters, complemented by an analog ammeter for precise observation of current surge characteristics.

Key technical capabilities include multi-station synchronous testing functionality, an integrated contact control mechanism, and dedicated calibration modes with specialized ports for equipment verification and parameter adjustment. The system implements configurable long-duration interruption/continuity protection with adjustable timing parameters; protection activation triggers automatic shutdown with audible/visual alarms.

When integrated with compatible plug, socket, and switch endurance testing apparatus, this system provides comprehensive compliance verification for standard switch load testing protocols.

Compliance Standards

• IEC 60669-1:2018 – Switches for household and similar fixed electrical installations – Part 1: General requirements
• GB/T 16915.1-2024 – Switches for household and similar fixed electrical installations – Part 1: General requirements
• GB/T 16915.2-2024 – Switches for household and similar fixed electrical installations – Part 2: Particular requirements

Technical Specifications

• Digital voltage display range: 0–300V AC, accuracy: Class 0.5
• Digital power display range: 0–9kW, accuracy: Class 0.5
• Switch rating configuration: AC 250V nominal with selectable current ranges (10A, 13A, 16A, 20A)
• Integrated voltage regulation achieves required 250V AC test voltage without external stabilization
• Adjustable input voltage maintains precise 250V AC test conditions
• All operational parameters calibrated for 250V AC reference, including power (W), peak current (I_peak), I²t values, and current surge waveforms
