Feature:

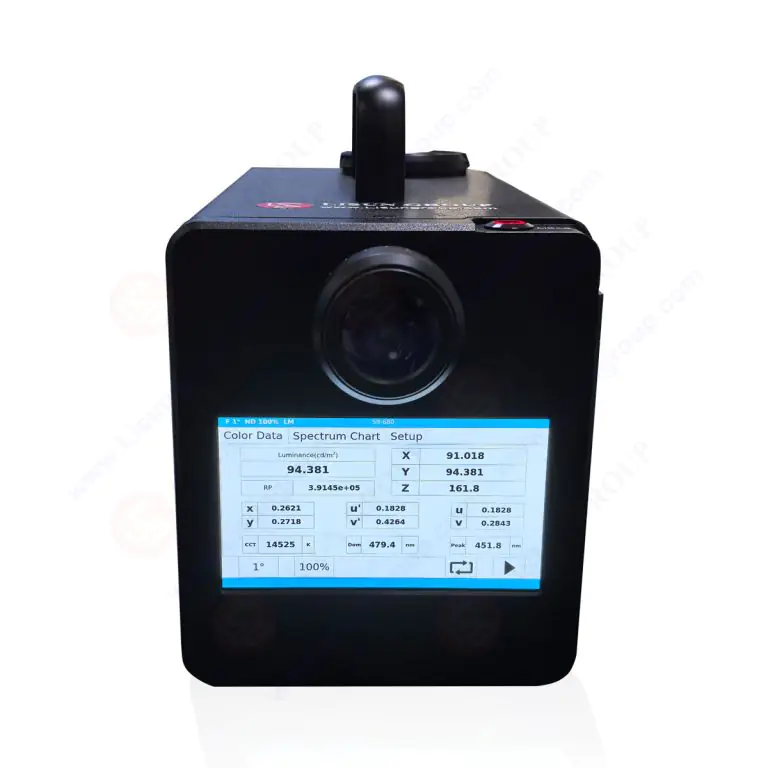

• KS-960 offers high dynamic range, speed, and precision.
• Enables HDR measurement of high-brightness LEDs without ND filter.
• Supports high-speed, precise luminance and chromaticity measurement.
• Equipped with a 4.3-inch touchscreen for settings control and data reading.
• Four motorized measurement angles for R&D and production line use.
• Displays spectral distribution, CIE chromaticity, dominant and peak wavelengths.
• Optional flicker measurement function available.

Specification:

• Model: KS-960, KS-960A
• Wavelength Range: 380 – 780nm
• Wavelength Accuracy: ±0.3nm
• Spectral Wavelength Width: Below 5nm
• Measuring Angles: Four switchable angles (2°, 1°, 0.2°, 0.1°)
• Minimum Brightness Display: 0.00001 cd/m²
• Minimum Spectral Radiance Display: 10⁻⁹W/(sr•m²•nm)
• Spatial Measurement: Chromaticity coordinates, color temperature, tristimulus values, dominant wavelength
• Luminance Range (2°): 0.01 – 20,000 cd/m²
• Luminance Range (1°): 0.03 – 100,000 cd/m²
• Luminance Range (0.2°): 0.75 – 500,000 cd/m²
• Luminance Range (0.1°): 3 – 1,200,000 cd/m²
• Chromaticity Accuracy: x, y: ±0.002@(A light source)
• Luminance Repeatability: 1%@A light source (0.01 – 5cd/m²); 0.5%@A light source (>5cd/m²)
• Chromaticity Repeatability: 0.002 @A light source (2°)
• Switch Measurement Angle Mode: Electric
• Operating Temperature: 5 – 50°C
• Communication: USB/LAN/WIFI/RS232

Typical Application:

• FPD optical property measurement and evaluation
• Micro LED, Mini LED optical analysis
• Mobile phone brightness and chromaticity analysis
• Illuminated character and dashboard analysis
