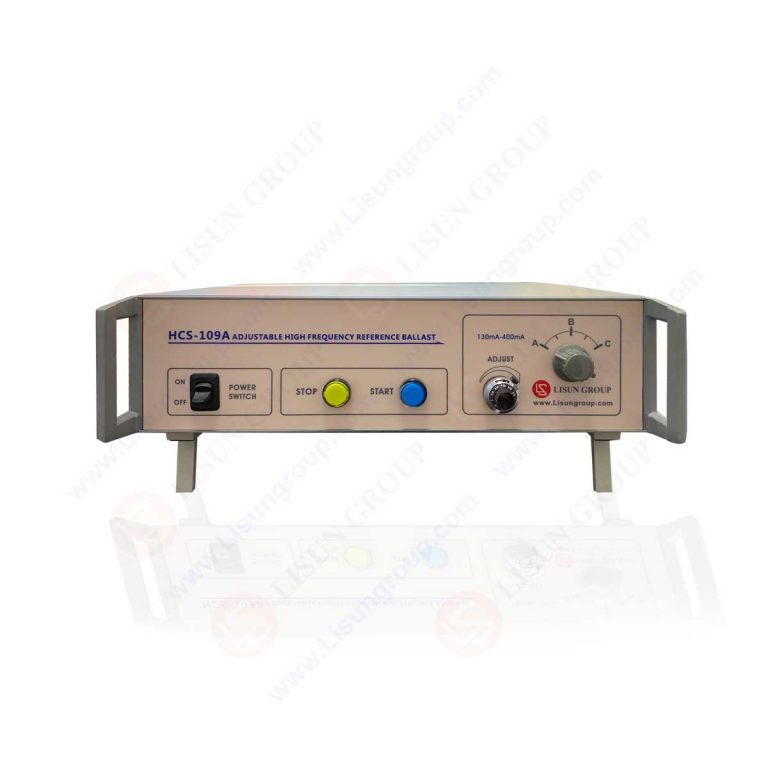

UL-1993 Compliant Adjustable High-Frequency Reference Ballast

UL-1993 Compliant Adjustable High-Frequency Reference Ballast

Product No: HCS-109A

Leave a Message






    captcha

    Description

  • The HCS-109A Adjustable High-Frequency Reference Ballast, also designated as a High-Frequency Current Source, provides an economical alternative to conventional IEC test methodologies. When integrated with the LPCE-2 high-precision spectroradiometer integrating sphere system, this instrument enables comprehensive measurement of photometric, colorimetric, and electrical parameters for high-frequency fluorescent lamps.

    Compliance Standards:
    IEC 60081:1997/GB/T 10682-2002 “Double-capped fluorescent lamps – Performance specifications”
    UL 1993 “Safety for Self-Ballasted Lamps and Lamp Adapters”

    Application Scope:
    • Per UL 1993 requirements, the HCS-109A facilitates input testing, temperature rise evaluation, leakage current measurement, and harmonic distortion analysis for LED Type A tube direct replacement fluorescent tubes.
    • In accordance with GB/T 10682-2002, UL 1993-S, and IEC 60081:1997, this reference ballast supports testing of high-frequency fluorescent lamps (e.g., T5 tubes) and power frequency fluorescent lamps (e.g., T8/T12 tubes). Additional technical guidance is available on the High-Frequency Fluorescent Lamp Measurement resource page.

    Technical Specifications:
    • Input Voltage: 200V–240V, 50/60Hz
    • Maximum Input Power: 80W
    • Output Current Range: 130mA–400mA (Adjustable), Accuracy: ±1%
    • Output Frequency: 25kHz ±2.0% (Adjustable), Accuracy: ±0.3kHz
