UL 2200 Figure 8.4 Test Pin

Name: UL 2200 Figure 8.4 Test Pin
Brand: LISUN

Product No: SMT-S2962

Leave a Message

Description

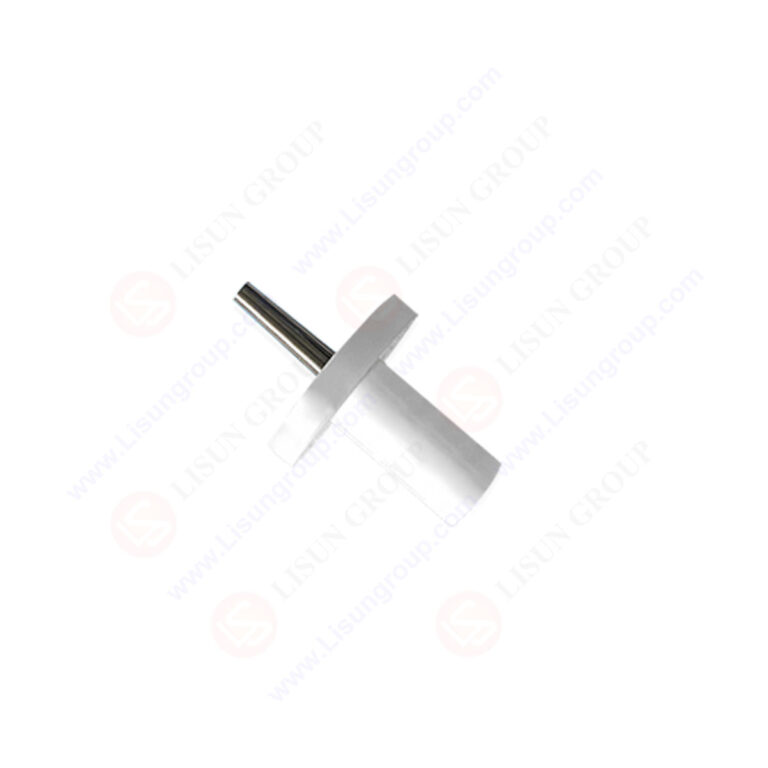

The UL 2200 Figure 8.4 Test Pin is a precision safety testing instrument engineered for stationary engine generator assemblies, including commercial backup generators and industrial stationary generators. This tool features a 3mm conductive metal probe designed to access confined spaces such as terminal slots and chassis seams to detect accessible hazardous live parts. A 25mm insulating baffle plate prevents over-insertion, while a 10mm-diameter insulated handle provides precise control during testing operations.

This test pin applies a controlled 20N thrust force to simulate accidental tool contact, ensuring strict compliance with UL 2200 safety standards for electric shock prevention in generator manufacturing. The cable-free design is compatible with optional low-voltage test supplies for extended functionality.

NOTE: Model SMT-S2962 is supplied without cable. For testing with low-voltage supplies using LISUN model SMT-529CV, select model SMT-1213C with cables.

Specifications

Tool Type: Test Pin (UL 2200 Figure 8.4; for hazardous live part testing in stationary engine generator assemblies)
Probe Material: Conductive metal (resistance ≤ 0.1Ω; corrosion-resistant; maintains rigidity under 20N force)
Handle/Baffle Material: Insulated plastic (handle resistance ≥ 100MΩ; heat-resistant to 110°C; baffle provides over-insertion protection)
Key Dimensions:
- Probe Diameter: 3mm ± 0.05mm
- Probe Length: 15mm ± 0.1mm
- Baffle Plate Diameter: 25mm ± 0.2mm
- Baffle Plate Thickness: 4mm ± 0.05mm
- Handle Diameter: 10mm ± 0.3mm
- Handle Length: 20mm ± 0.2mm
Applied Thrust: 20N ± 2N (simulates accidental small tool contact per UL 2200 test requirements)
Cable Configuration: Cable-free design (compatible with optional low-voltage test supplies)
Core Function: Detects accessible hazardous live parts in generators via 3mm probe; prevents over-insertion with baffle; ensures UL compliance
Test Procedures: 1. Inspect the test pin for bent tips, cracked insulation, or loose baffles; confirm conductivity…
