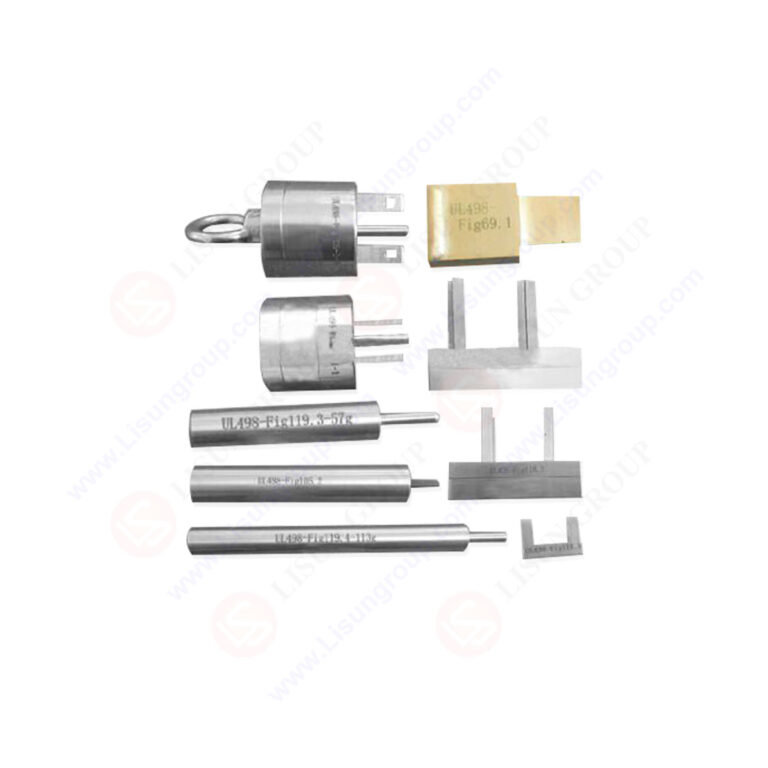

UL 498 American Standard Plugs and Socket Outlets Gauges

Application: This UL 498 test gauge set is designed for dimensional verification and structural inspection of American standard plugs and receptacles to ensure compliance with UL 498:2012 standards. Primary applications include quality control in electrical component manufacturing, testing laboratories, and certification facilities for electronics, appliances, and electrical accessories.

Features: All gauge dimensions, tolerances, material specifications, hardness (≥50HRC), and surface roughness conform to UL 498 requirements. Constructed from materials with minimal thermal expansion coefficients to ensure dimensional stability and measurement reliability across operational temperature ranges.

Standards Compliance: UL 498 “Attachment Plugs and Receptacles”

Specifications: LISUN Model Product Specifications (UL 498-2019)

• SMT-PA100A Articulate probe with web stop (Figure 9.1)
• SMT-PA190 Probe (Figure 10.1)
• SMT-PA215A Flat probe (Figure 31.1)
• GNGPL-SB1860 Reference plug (Figure 74.1)
• GNGPL-SB1888 Typical test apparatus (Figure 74.2)
• GNGPL-SB1889C Improper insertion test blades (Figure 100.1, test blade1 & test blade2)
• GNGPL-SU3639 Test Gauge of UL 498 (Figure 109.1)
• GNGPL-S3635A Test Gauge of UL 498 (Figure 109.2)
• GNGPL-SB1276A Receptacle test fixture (Figure 124.1)
• GNGPL-SB1277A Push out tool (Figure 124.3)
• GNGPL-S3638 Bridge (Figure 124.5)
• GNGPL-SB1609A Test pin A (Figure 125.1)
• GNGPL-SB1610 Test pin B (Figure 125.2)
• GNGPL-SB0704E 57g ground pin (Figure 125.3)
• GNGPL-SB1622E 113g ground pin (Figure 125.4)
• GNGPL-SU0196 No.14AWG test pin (Figure 136.2)
• GNGPL-SM390 Small Test Probe with UL498 (Figure 139.1)
• GNGPL-SU0196 Large Test Probe of UL498 (Figure 139.2)
• GNGPL-S3336 Fixture for assembly security test (Figure 174.2)
• GNGPL-SB0704A Standard grounding pin (Figure SC 21.1)
• GNGPL-SB0705 Over size ground pin (Figure SC 25.1)
